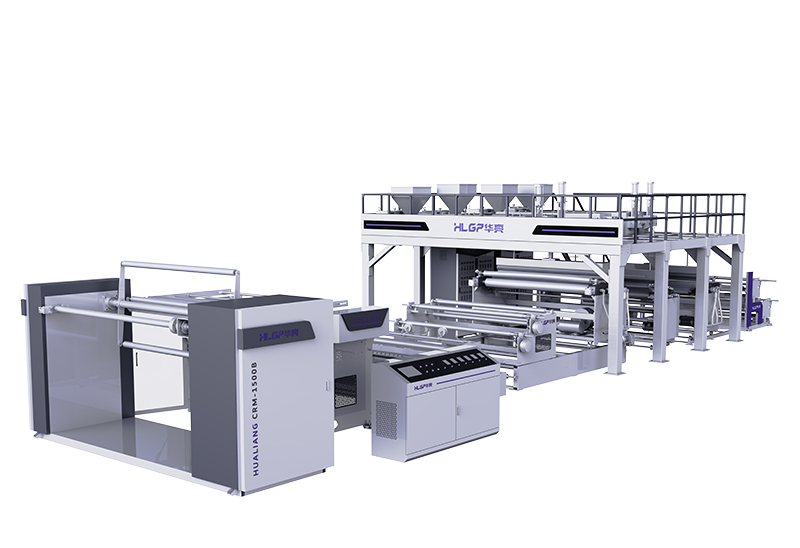

7-Layer Air Bubble Film Machine (5-Extruder)

Product features:

Film Width:1000mm-3000mm

Main Parts:Extruder, Filter,Traction system, Winder, PLC Control

Optional Device:Mixer, Chiller

Get a Quote
Share:
Max Speed
40m/min
Output
Customized by configuration
7-Layer Air Bubble Film Machine (5-Extruder)
7-Layer Air Bubble Film Machine (5-Extruder) 2
Low Cost 3 layers 1000mm Casting Film Machine
Low Cost 2 layers 1000mm Stretch Film Machine
Low Cost 2 layers 1000mm Stretch Film MachineDouble Layer Stretch Film Making Machine
Low Cost 2 layers 1000mm Stretch Film Machine
Low Cost 2 layers 1000mm Stretch Film Machine
×
Product Description Main Technical Parameters Product Highlights
Product Description

To produce 5-7 layers of laminated bubble wrap : Two layers of coatings (e.g. aluminum foil, pearlescent film, kraft paper, woven bags, etc.) at the top and bottom;The rest of the intermediate layers are repeated of flat and bubble layers shown as.

Stronger cushioning protection effect, widely used and each layer can be costomized by your special needs.





Main Technical
Parameters

Model

HLFPE-1250

HLFPE-1600

HLFPE-2000

HLFPE-3000

Screw diameter

Φ65mm/Φ55mm/Φ55mm/Φ65mmΦ55mm

Φ75mm/Φ65mm/Φ55mm/Φ75mm/Φ65mm

Φ85mm/Φ75mm/Φ65mm/Φ85mm/Φ75mm

Φ95mm/Φ85mm/Φ80mm/Φ95mm/Φ85mm

L/D

34：1

34：1

34：1

34：1

Output

250Kg/hr

350Kg/hr

450Kg/hr

500Kg/hr

Extruder motor

22KW/15KW/15KW/ 22KW/15KW

30KW/22KW/15KW/ 30KW/22KW

37KW/30KW/22KW/ 37KW/30KW

45KW/37KW/30KW/ 45KW/37KW

Speed

25m/min

25m/min

25m/min

25m/min

Weight

15000KG

18000KG

20000KG

23000KG
Product Highlights
Hydraulic changer：
Quickly switch filters in 2 seconds，non-stopping the machine
Optional T-die material: Germany 2311steel /P20H：
It is 150% harder than 45# steel
Optional Huang Yan Inner Heating T-die：
Energy savings of up to 30% compared to traditional T-die
Optional cooling rollers size：
The larger the size of the bubble roll, the average cooling effect increases by 50%.
Screw L/D 34:1：
-Large screw L/D increase extrusion production by 20-40%.
-Can use 100% recycled material
Online recycling：
The Machine can Simultaneous 100% recycling of the edge materials，achieve 0 waste.
PLC Brand: SIEMENS
-Advanced anti-interference technology /high reliability
AC Contactor Brand: SIEMENS
-Advanced protection and control circuits
Inverter Brand：KEWO
-The whole machine adopts AD1000
-High performance, High reliability and low noise.
